STRAIGHT SHELVING
Modular design allows tiers to be stacked up to eight levels high. All tiers come
with welded dividers to keep the files upright. Shelves are also available 24"
wide. Straight shelves maximize storage capacity while minimizing the use of
valuable floor space.
SLANTED SHELVES
The 55 degree angled design provides increased visibility of the color coding on
the folders. Slanted shelving allows the end-tabs of each folder to extend past
the next for faster retrieval. Additional tiers can be added at any time to
increase file capacity. Shelves are also available 24" wide.
WARRANTY
All shelving and track systems include a manufacturer's lifetime warranty.
Certain stipulations apply. Ask for a copy of the warranty for details.
Allow 1-2 weeks for delivery.
Pre-Configured Shelving
DIMENSIONS
(Nominal)
Size A
B
C D
24" 10-3/8" 10"
24" 30-3/8"
36" 10-3/8" 10"
36" 42-3/16"
48" 10-3/8" 10"
48" 54-13/16"
Pre-Configured Shelving
DIMENSIONS
(Nominal)
Size
A
B
C
24"
10-3/8" 12-1/4"
24"
36"
10-3/8" 12-1/4"
36"
48"
10-3/8" 12-1/4"
48"
Colors Available
- Putty or Lt. Gray
Specify color when ordering

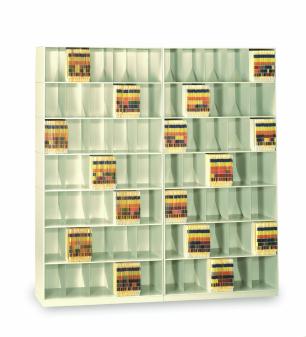

Straight Shelving
Slanted Shelving
Quality Construction
Synonymous with strength and durability, all shelving features a 20 gauge back-side made
from one piece of steel. Each side has a 20 gauge welded bottom, and each shelf has four 20
gauge welded dividers that extend the full height of the shelf. The front of each shelf has a
double hem for smoothness and added strength.
The top finishing unit is made from 20 gauge cold rolled steel. The base unit is constructed of
20 gauge channels that are welded and reinforced.
2" Base
TOP
Each tier is fully assembled and
ready to stack and connect in a
matter of minutes with simple
drive rivets.
Easy Assembly
36" Wide Straight Shelving
(Includes top and base)
Description File Capacity Height
Stock No. Weight
2 Shelves High
72"
22.75"
9002FS
52 lbs.
3 Shelves High
108"
33.00"
9003FS
70 lbs.
4 Shelves High
144"
43.50"
9004FS
88 lbs.
5 Shelves High
180"
54.00"
9005FS
106 lbs.
6 Shelves High
216"
64.25"
9006FS
124 lbs.
7 Shelves High
252"
74.50"
9007FS
142 lbs.
8 Shelves High
288"
85.00"
9008FS
160 lbs.
48" Wide Straight Shelving
(Includes top and base)
Description File Capacity Height
Stock No. Weight
2 Shelves High
96"
22.75"
D98012ST
70 lbs.
3 Shelves High
144"
33.00"
D98013ST
94 lbs.
4 Shelves High
192"
43.50"
D98014ST
118 lbs.
5 Shelves High
240"
54.00"
D98015ST
142 lbs.
6 Shelves High
288"
64.25"
D98016ST
166 lbs.
7 Shelves High
336"
74.50"
D98017ST
190 lbs.
8 Shelves High
384"
85.00"
D98018ST
214 lbs.
36" Wide Slanted Shelving
(Includes top and base)
Description File Capacity Height
Stock No. Weight
2 Shelves High
58"
22.75"
9502SFS
52 lbs.
3 Shelves High
87"
33.00"
9503SFS
70 lbs.
4 Shelves High
116"
43.50"
9504SFS
88 lbs.
5 Shelves High
145"
54.00"
9505SFS
106 lbs.
6 Shelves High
174"
64.25"
9506SFS
124 lbs.
7 Shelves High
203"
74.50"
9507SFS
142 lbs.
8 Shelves High
232"
85.00"
9508SFS
160 lbs.
48" Wide Slanted Shelving
(Includes top and base)
Description File Capacity Height
Stock No. Weight
2 Shelves High
80"
22.75"
D9802SL
70 lbs.
3 Shelves High
120"
33.00"
D9803SL
94 lbs.
4 Shelves High
160"
43.50"
D9804SL
118 lbs.
5 Shelves High
200"
54.00"
D9805SL
142 lbs.
6 Shelves High
240"
64.25"
D9806SL
166 lbs.
7 Shelves High
280"
74.50"
D9807SL
190 lbs.
8 Shelves High
320"
85.00"
D9808SL
214 lbs.
Colors Available
- Putty or Lt. Gray
Specify color when ordering
Putty
Lt. Gray
FRONT
B
C
FRONT
B
D
C
C
C
D
A
B
